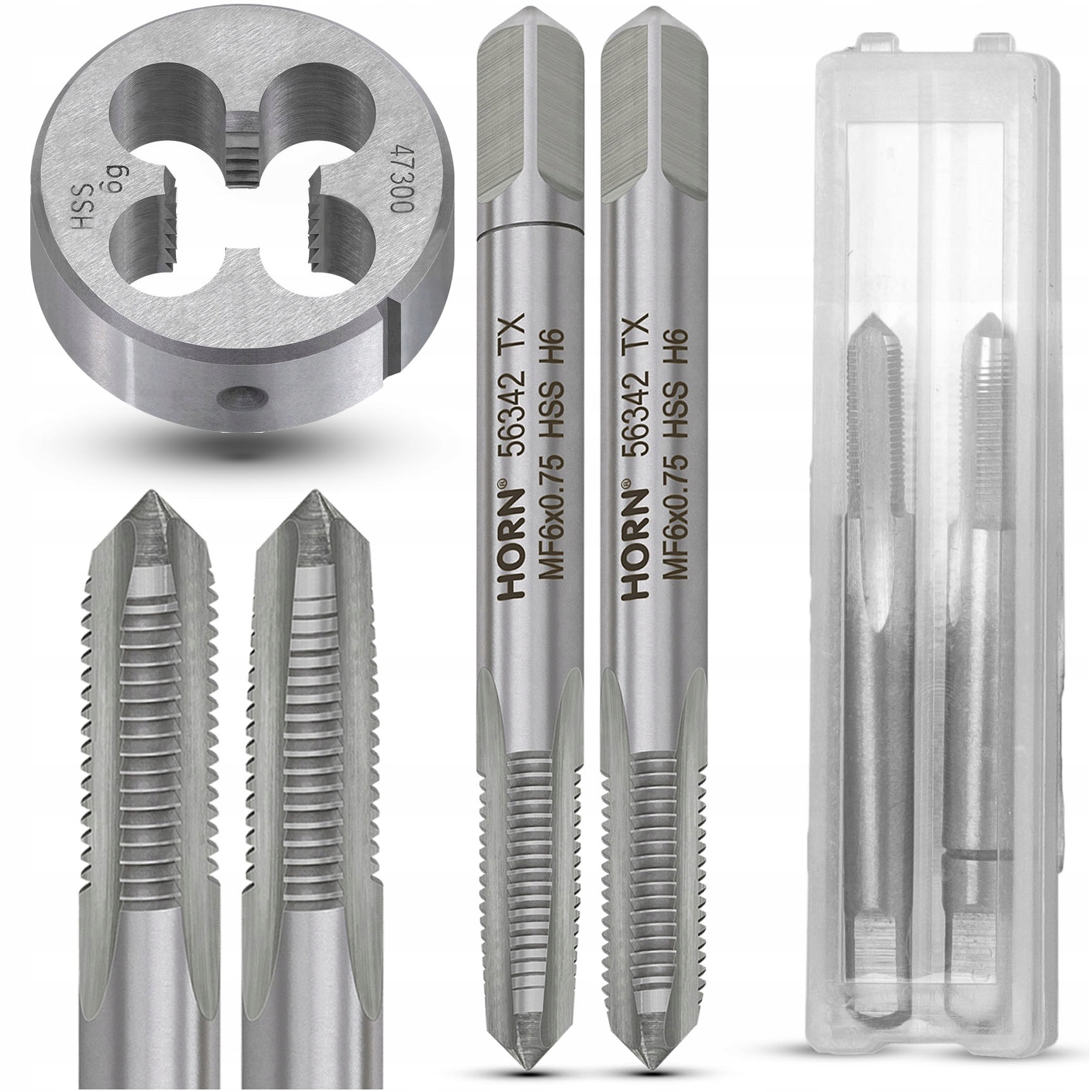

ARTPOL GWINTOWNIK M 6x0,75mm kpl.2szt.
PLOTTERS + THREAD Die M6x0.75 HSS HAND SET

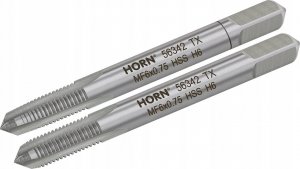

Metric plotter M6x0.75:
⚙️Technical specification:⚙️
☑️thread type: metric ordinary right-handed.
☑️hardness: 60°HRc (+/-1°).
☑️number of chip grooves: 3.
☑️thread profile: 60° angle.
☑️material: NC6 tool steel (W-1.2063).
✔️Included:
1️⃣Die No. 1 (tap)
2️⃣Die No. 2 (finisher)
♻️dedicated plastic case
✔️Standards:
✅Compliant with DIN-2181/2-P.
✅Thread standard: ISO DIN-13.
✅Thread tolerance: ISO2 (6H).
The recommended hole diameter for threading is ø5.0 mm.

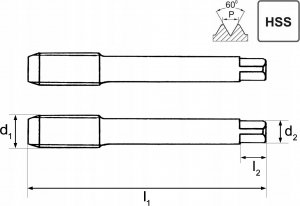

✏️Dimensions (technical drawing):
- thread (d1): M6.
- thread pitch (P): 0.75 mm.
- total length (l1): 56 mm.
- handle length (l2): 8 mm.
- handle diameter (d2): square 4.9 mm.

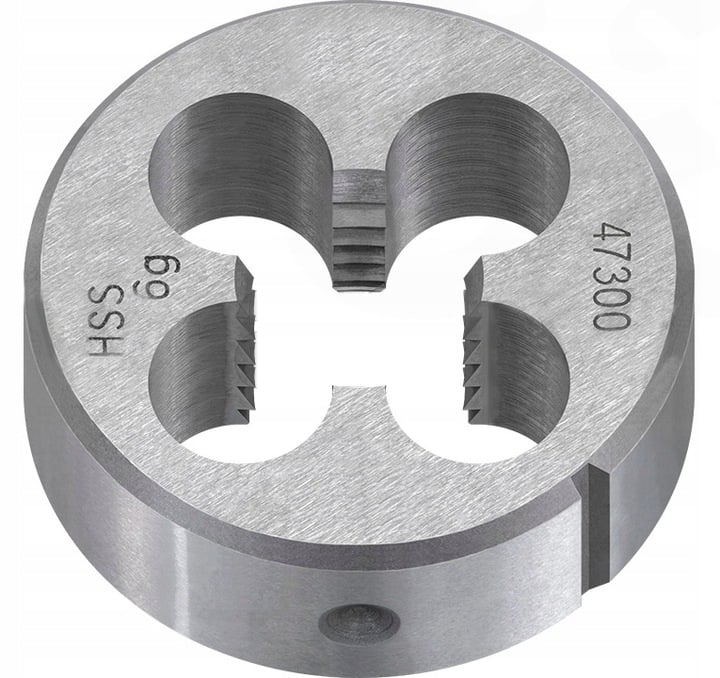

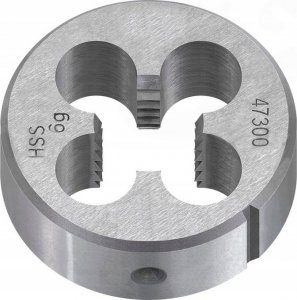

Metric thread die M6x0.75:
✔️Technical specification:
☑️thread type: metric ordinary right-handed.
☑️hardness: 60°HRc (+/-1°).
☑️chaser: 1.75P.
☑️thread profile: 60° angle.
☑️material: NC6 tool steel (W-1.2063).
☑️dedicated plastic case included.
The thread die has mounting holes for use in threading holders with ø20x7mm slots.
✔️Standards:
✅Compliant with DIN-EN 22 568.
✅Thread standard: ISO DIN-13.
✅Thread tolerance: ISO (6g).

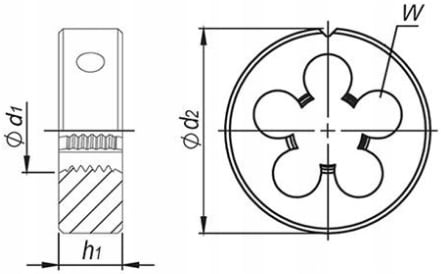

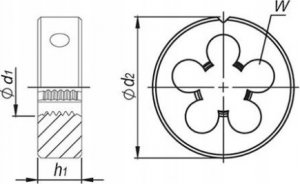

✏️Dimensions (technical drawing):
- tapped thread (d1): M6.
- thread pitch (P) - 0.75 mm.
- outer diameter (d2): 20 mm.
- die thickness (h1): 7 mm.
- chip slots (W): 4.
- recommended shaft diameter for threading: ø5.88 mm.
