Neo-IP-64-SET

Alarm system with built-in WiFi module and building automation features. Thanks to its modular design, the system can be expanded and customized to meet the changing needs of the user. Neo-IP-64 panels can be upgraded to NeoLTE-IP-64 standard by adding the EXP-LTE module. Design and features compliant with PN-EN 50131-3, Grade 2.

Set contents

• panel Neo-IP-64
• power supply PSR-ECO-5012-RS
• antenna AT-GSM-MINI + AT-SMAm-20cm-SMAf
• housing O-R4D

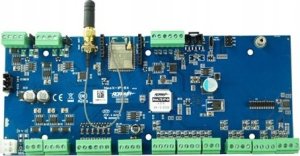

Neo-IP-64

• 4 independent zones
• built-in WiFi modem
• possibility of LTE module upgrade (EXP-LTE expander required)
• wired LAN connection possible (EXP-LAN expander required)
• 16/64 programmable inputs
• 8/40 programmable outputs
• 1 analog input 0-10V/4-20mA
• support for up to 32 users
• 4 timers with calendar/ astronomical timer
• 8 room thermostats
• memory for up to 10,000 events

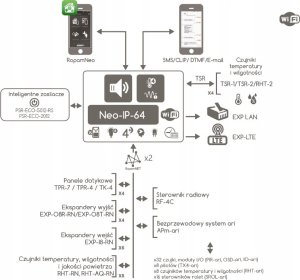

• 2 RopamNET communication buses
• TSR connector for connection of 4 TSR-1/TSR-2/RHT-2 sensors
• programming: local via micro USB or WiFi/ETH, remote via RopamBridge server (LTE/IP)
• disconnectable screw terminals
• built-in Modbus TCP/IP and MQTT

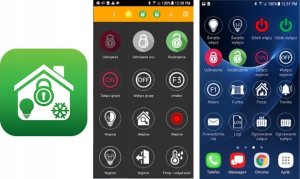

• dedicated, free RopamNeo mobile application

PSR-ECO-5012-RS

• Output power/current capacity 50W/3A
• Power output on screw terminals and system cable harness.
• Cable harness for battery connection
• Built-in temperature sensor
• TH35 rail housing, 6 module width.
• Dimensions 106x90x58

Main power supply features:

• Auto-compensation of battery charging voltage depending on temperature
• Two-phase battery charging: constant-current and constant-voltage
• Electronic output protection with automatic return: overcurrent OCP, short circuit SCP, overheat OHP, overvoltage OVP, undervoltage UVP
• Dynamic testing and battery diagnostics

PSR-ECO AC/DC power supplies are characterized by high functionality and versatility for use in low-voltage installations. PSR-ECO-2012 power supply is dedicated for operation with Neo-IP-64, Neo-IP alarm panels.

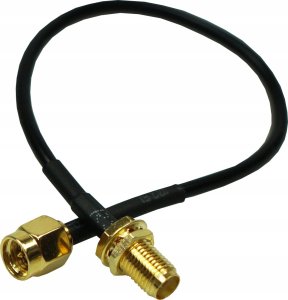

AT-GSM-MINI + AT-SMAm-20cm-SMAf

LTE/GSM antenna, mini antenna for SMA connector mounting with extension for enclosure.

Antenna for indoor use.

Properties:

• Frequency: dual-band, 900/1800 MHz, omnidirectional
• SMAm connector,
• Gain: 2 dBi
• VSWR <2.0
• Impedance: 50 Ohm
• Polarization: vertical, omnidirectional
• Dimensions: ø 12 x 55 mm
• Color: black
• Operating temperature: -30°C ÷ 85°C

O-R4D

• Surface-mounted metal enclosure
• Dimensions 325x305x95 [mm](WxHxD)
• Space for 7Ah or 18Ah battery
• Material: 1mm sheet metal, light gray color
• Anti-tamper included, installation sleeves,
