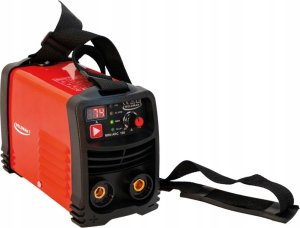

Weldman SPAWARKA INVERTER WELDMAN ARC-160 MINI SYNERGIA / WALIZKA

WELDMAN® ARC 160 - INVERTER WELDER

| Brand: Weldman | Welding Methods: MMA | Power Supply: 230V | Welding Current: 160A | Efficiency: 60% |

STANDARD EQUIPMENT

• Weldman ARC 212 welder
• 2m electrode holder cable 200A (DX25)
• 1.6m ground clamp cable 200A (DX25)

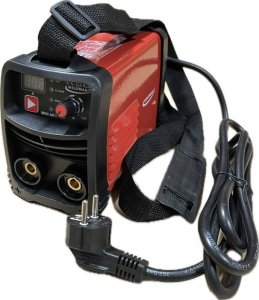

• 2m power cord with 230V plug
• Welding shield
• Brush with hammer for cleaning

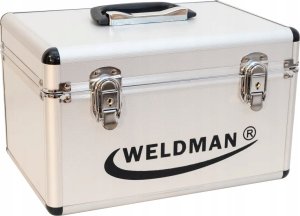

• Aluminum case

Other accessories needed for full operation of the welder, such as,

• welding helmet
• gloves
• rutile electrodes

The ARC 160 inverter welder is used for welding with coated electrodes with direct current (DC).

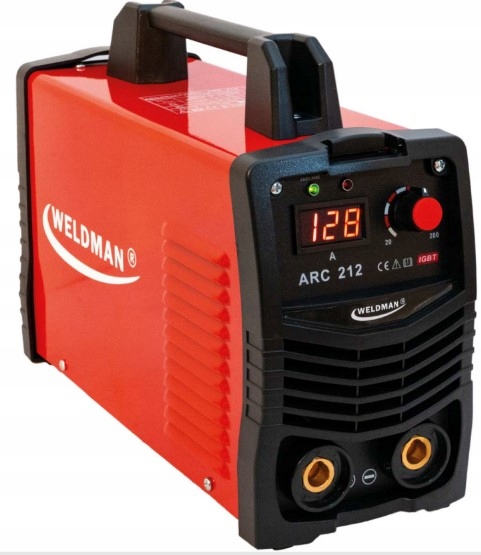

If you are a person who likes proven and reliable products, be sure to read the following description of the ARC 212 inverter welder.

It is designed for welding rutile and basic electrodes up to 4 mm of various types of steel (low carbon, alloy, stainless, etc.) and cast iron. The welder is equipped with adjustable functions:

• HOT START
• ARC FORCE
• ANTI STICK

These are solid and durable power sources for professional welders. The devices are characterized by the highest welding performance and reliability. They have been made based on IGBT inverter technology.

Thanks to its compact design, the ARC 220 LCD SYNERGY welder will be useful both for repair work in halls and outside. The device works great in field work, its small and lightweight construction facilitates transport.

During work, an electronically controlled smooth current regulation and special equipment protection against overload will be useful.

TECHNICAL DATA:

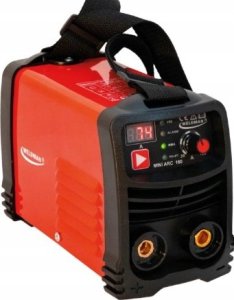

• Device Type: MINI ARC 160 SYNERGY
• Power Supply Voltage [V]: 230
• Welding Current Range: 20-160
• Max Efficiency EN 60974-1:  160A@60% 124A@100%
• Electrode Diameter [mm]: 2-4
• Open Circuit Voltage [V]: 60
• Dimensions [cm]: 22x10x14
• Weight [kg]: 2.4

IGBT TECHNOLOGY

Modern technology based on bipolar transistors with isolated gate. It combines the ease of control of field-effect transistors with the high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology significantly extends the reliable operation of welding equipment.

OVERHEAT PROTECTION

The power source is equipped with a thermal, automatic overload switch. When the welder's temperature is too high, the protection will disconnect the welding current and the overheating indicator diode will light up. After the temperature drops, the overload switch will reset automatically.

DUTY CYCLE

The duty cycle is based on a 10-minute period. A 60% duty cycle means that after 6 minutes of work, a 4-minute break is required. A 100% duty cycle means that the device can work continuously, without breaks.

SYNERGY

Welding with the MMA method using synergic settings. The welder adjusts the welding parameters depending on the chosen type and thickness of the material. These parameters can be changed by the user to adjust the settings to their own needs.

HOT START FUNCTION

The function commonly known as hot start. It works when the arc ignites, causing a momentary increase in welding current above the value set by the welder. HOT START aims to prevent the electrode from sticking to the material and is a great help when igniting the arc. However, it is recommended to turn off this function when welding small elements, as it may cause burning of the welded material.

ARC FORCE FUNCTION

It allows for adjusting the dynamics of the welding arc. Shortening the length of the arc is accompanied by an increase in welding current, which stabilizes the arc. Lowering the value gives a soft arc and a shallower fusion depth.

ANTI STICK FUNCTION

The ANTI STICK function is an anti-sticking protection that reduces welding current in case the electrode sticks to the welded material. This makes it easier to detach the electrode and protects the device from damage.

TIG DC LIFT

Welding with a tungsten electrode in an inert gas environment using a handle with a gas valve in the grip. The arc is ignited by scraping, similar to MMA method.

COOLING

The device has a fan cooling system, which significantly increases its efficiency.
